Quick Details

Type:

variable vane pump

Model Number:

VP-SF-20-D(VP-20-FA3)

Brand Name:

ZF HYDRAULIC

Placeof Origin:

Guangdong,China (Mainland)

pressurerange:

50--70bar (kgf/cm2)

displacement:

20L/min

shaftkey:

parallelkey or spline shaft

shaftdiameter:

12.70mm or 15.875mm

flangesize::

82.55mm

parallelkey spec.:

25mmlength, 3.18mm width

sauctionport diameter:

1/2"

deliveryport diameter:

3/8"

drainport diameter:

1/4"

weight:

5 kg

Supply Ability

SupplyAbility:

10000Piece/Pieces per Month

Packaging & Delivery

Packaging Details

plasticbag pack pumps,then put into thick carton, then heap up these cartons on theplastic pallet.

Port

SHENZHEN

Product Description

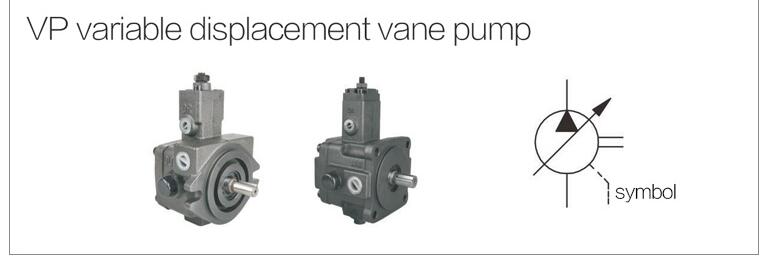

variable displacement vane pump

Characteristic:

1, use precision machiningtechnology, can automaticly adjust displacement and complement under settingpressure. decrease the loss of load power ,high efficiency , low temperature ,energy saving.

2, low noise, response promptly, highefficiency and steady operation.

3, simple structure, simpleoperation, easy to maintain.

4, include adjusting screw, canadjust the displacement and pressure randomly, widely apply for lathe machineand show making machine,etc.

5, long working life, steadystructure, small volume, can connect with motor directly, save space,durability and so on.
