Single Vane pump VP-SF-15-D

Single Vane pump VP-SF-15-D Single Vane pump VP-SF-15-D

Product name:Single Vane pump VP-SF-15-D

Item:

Details:

Single Vane pump VP-SF-15-D

Quick Details

Type:

variablevane pump

ModelNumber:

VP-SF-15-D(VP-15-FA3)

BrandName:

ZF HYDRAULIC

Placeof Origin:

Guangdong,China (Mainland)

pressurerange:

50--70bar (kgf/cm2)

displacement:

15L/min

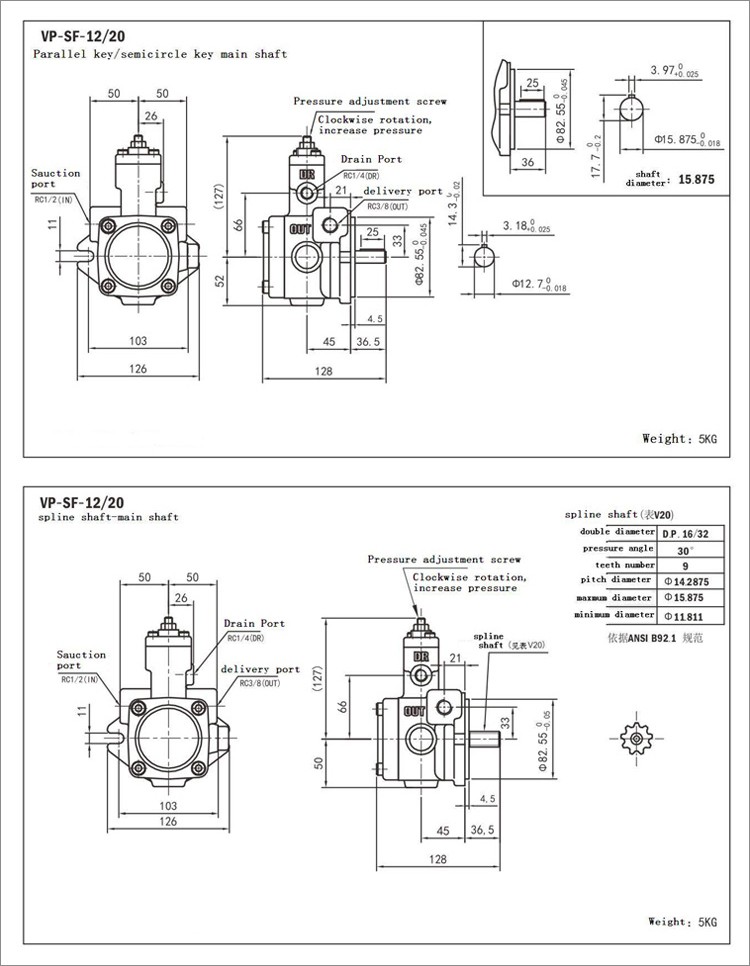

shaftkey:

parallelkey or spline shaft

shaftdiameter:

12.70mm or 15.875mm

flangesize::

82.55mm

parallelkey spec.:

25mmlength, 3.18mm width

sauctionport diameter:

1/2"

deliveryport diameter:

3/8"

drainport diameter:

1/4"

weight:

5 kg

Supply Ability

SupplyAbility:

10000Piece/Pieces per Month

Packaging & Delivery

PackagingDetails

plasticbag pack pumps,then put into thick carton, then heap up these cartons on theplastic pallet.

Port

SHENZHEN



Product Description

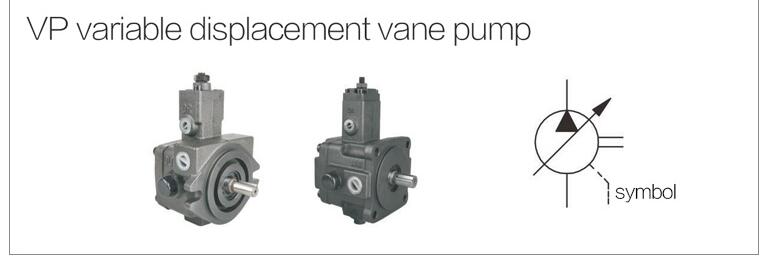

variable displacement vane pump








Productpacking details:

style#

carton dimension of each item

net weight

gross weight

quantity

VP-SF-20D

TBA

5 kg

5.5 kg

1 pc/ carton


Our Services

Warrantyperiod:  ONE YEAR



1,Withinone week after receipt of the goods, if customer use the products in correctmethod,and find any problem of performance or  construction with obviousevidence,we will be responsible for replacement or other discussing solutionbetween us.

2,Butif customer using method are not correct, or customer disassemble our productsprivately,we will not  responsible  for any problem or defectivepoints of products.

3,If you meet any questions of installation or debugging, please inquiry usanytime, our Engineer will provide technical support in time, or we will helpyou to resolve the technical failure through online video.

4,Any damage from transportion, we will slove the problem according to theresponsibility standard of INCOTERMS.
