Quick Details

Type:

variable vane pump

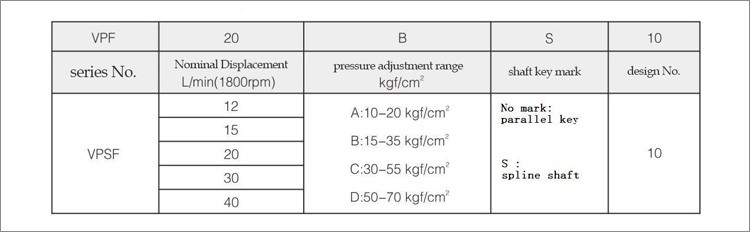

Model Number:VP-SF-12-D(VP-12-FA3)

Brand Name:ZF HYDRAULIC

Placeof Origin:Guangdong,China (Mainland)

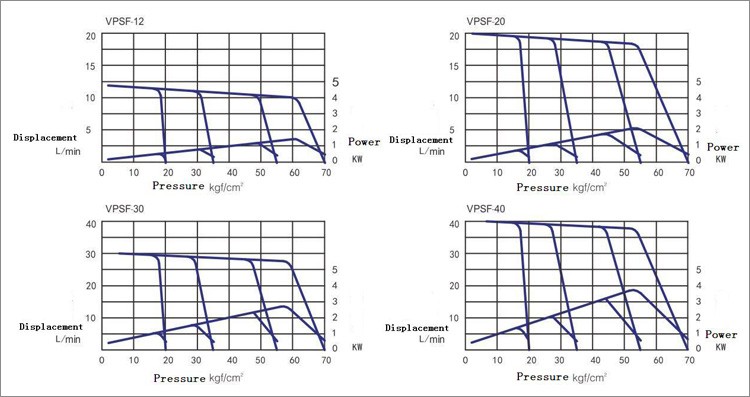

pressure range:50--70bar (kgf/cm2)

displacement:12L/min

shaftkey:parallelkey or spline shaft

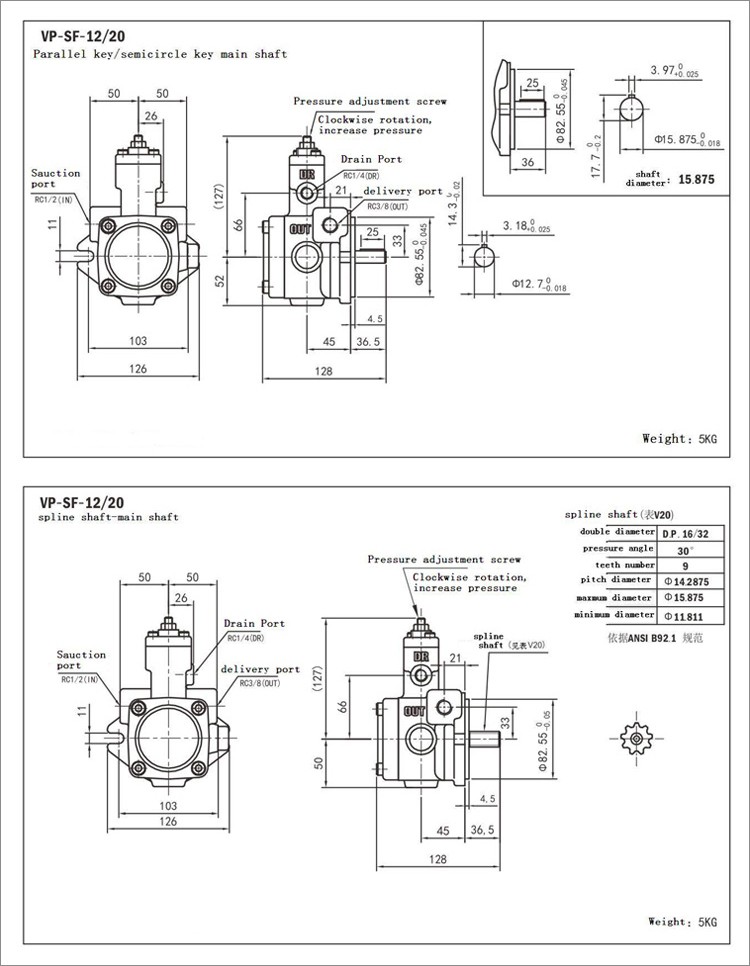

shaftdiameter:

12.70mm or 15.875mm

flangesize::82.55mm

parallelkey spec.:25mmlength, 3.18mm width

sauctionport diameter:1/2"

deliveryport diameter:3/8"

drainport diameter:1/4"

weight:5 kg

Supply Ability

SupplyAbility:10000Piece/Pieces per Month

Packaging & Delivery

PackagingDetails

plasticbag pack pumps,then put into thick carton, then heap up these cartons on theplastic pallet.

Port

SHENZHEN

Product Description

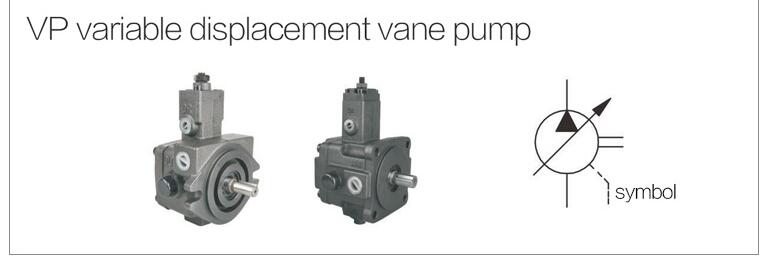

variable displacement vane pump

Characteristic:

1, use precision machiningtechnology, can automaticly adjust displacement and complement under settingpressure. decrease the loss of load power ,high efficiency , low temperature ,energy saving.

2, low noise, response promptly, highefficiency and steady operation.

3, simple structure, simpleoperation, easy to maintain.

4, include adjusting screw, canadjust the displacement and pressure randomly, widely apply for lathe machineand show making machine,etc.

5, long working life, steadystructure, small volume, can connect with motor directly, save space,durability and so on.

Productpacking details:

Our Services

Warrantyperiod:  ONE YEAR

1,Withinone week after receipt of the goods, if customer use the products in correctmethod,and find any problem of performance or  construction with obviousevidence,we will be responsible for replacement or other discussing solutionbetween us.

2,Butif customer using method are not correct, or customer disassemble our productsprivately,we will not  responsible  for any problem or defectivepoints of products.

3,If you meet any questions of installation or debugging, please inquiry usanytime, our Engineer will provide technical support in time, or we will helpyou to resolve the technical failure through online video.

4,Any damage from transportion, we will slove the problem according to theresponsibility standard of INCOTERMS.

Vp-12 15F/A3 variable vane pump variable vane pump vp-12/15/30/40

Vp-20-f /A3SHENYU variable vane pump VP30 VP40 SHENYU variable vane pump

The p20-20-fa3 ansson twin-bladed vane pump vp55fd-a5-b3-50s

Variable vane pump vp2-30-70-20 20 35 55 VPSF low noise spline

Ansong twin-vane pump vp55fd-a5-b3-50s vp2-40-70 variable vane pump

Please contact us for details, we will serve you wholeheartedly.

Machine pump variable vane pump VP20 vp-30/40-70 dual variable vane pump import pump wholesale

Machine pump variable vane pump VP20 vp40-40 low pressure double vane pump domestic pump wholesale

Vp2-40-70 variable vane pump ansong dual vane pump vp55fd-a5-b3-50s

Vp-30/40-70 dual variable vane pump vp-20-fa3 low noise pump

Vp-20-f /A3SHENYU variable vane pump vane pump electric unit 2.2KW+VP40

Taiwan double vane pump vp40-40 vd1-30/40 low pressure variable vane pump

What should I pay attention to when purchasing hydraulic system? ZF hydraulic remind you:

1. If it is bulk purchase of hydraulic system, must choose the normal hydraulic system manufacturers! (for example: ZF hydraulic)

2 buy hydraulic system must sign a formal contract with the manufacturer!

3. Before purchasing hydraulic system in large quantities, the manufacturer must make prenatal samples for confirmation!

ZF hydraulic branch provides professional hydraulic system bulk purchase, looking forward to cooperating with you!

VP30 VP40 SHENYU variable vane pump vp-12 15F/A3 variable vane pump





Vp2-40-70 variable vane pump vp-sf-40-d variable vane pump juntai





Vp-12 15F/A3 variable vane pump





Directional control loop





A circuit that controls the flow direction of the hydraulic medium. The directional control valve is used to control the movement direction of a single actuator, so that it can be positive and negative direction movement or stop the loop, known as the reversing loop, the figure of the reversing valve that plays this role. When the actuator stops, the loop that prevents the actuator from moving due to leakage caused by external factors such as load is called the locking loop.





Vp40-40 low pressure double vane pump yi sheng Taiwan vp-08/12/15/20-fa3 variable vane pump





VPSF low noise spline VP30 VP40 SHENYU variable vane pump





Vp-12 15F/A3 variable vane pump vp2-40-70 variable vane pump





Vp-30/40-70 dual variable vane pump vp-sf-40-d variable vane pump juntai





Vane pump vane pump vp-20-fa3 vane pump vp-20-fa3





Taiwan yisheng vp-08/12/15/20-fa3 variable vane pump medium pressure variable vane pump hvp-40





Premium hydraulic pump vp20-20-fa3 vp30 vane pump hydraulic pump





Shenzhen supplies non-standard hydraulic system





Shenzhen supplies non-standard cup machine hydraulic system





Shenzhen supplies non-standard beaker hydraulic system





Shenzhen supplies non - standard network hydraulic system





Shenzhen supplies non - standard stainless steel hydraulic system





Shenzhen supply non-standard blow bottle machine hydraulic system





Shenzhen supplies non-standard blow molding machine hydraulic system





Shenzhen supply non-standard hydraulic station





Shenzhen supplies non - standard hydraulic press





Shenzhen supplies non - standard CNC hydraulic system





Shenzhen supply non-standard





Standard hydraulic system supplied by shenzhen





Shenzhen supplies standard cup machine hydraulic system





Shenzhen supply standard beaker hydraulic system





Shenzhen supplies standard hydraulic system for network change





Standard stainless steel hydraulic system supplied by shenzhen





Shenzhen supply standard bottle blowing machine hydraulic system





Shenzhen supply standard blow molding machine hydraulic system





Shenzhen supply standard hydraulic station





Standard hydraulic press is supplied in shenzhen





Shenzhen supplies standard CNC hydraulic system





Shenzhen supply standard





Premium hydraulic pump vp20-20-fa3 vane pump hydraulic pump VP pump vp-15





Variable vane pump vp5f-b4-50 VP series pump vane pump vp-15/20/30/40





VP-08/12/15/20-FA3 variable vane pump VP-40-140 variable vane pump





Variable vane pump vp-12/15/30/40 vp30 vane pump hydraulic pump





Vane pump hydraulic pump vp-15 VP30 VP40 SHENYU variable vane pump





Variable vane pump vp-12/15/30/40 VP30 machine tool pump variable vane pump





Working temperature





Refers to the hydraulic system of hydraulic oil temperature at work, the main of the hydraulic oil viscosity-temperature properties and thermal stability, work temperature - 10-90 ℃ with the L - HH, L, L HL - HM





Hydraulic oil, less than 10 ℃ with L - HV, L - HS, working temperature 90 ℃ > choose the high quality of L - HM, L - HV, L - HS. The general relationship between ambient temperature and operating temperature is: hydraulic setting





In the workshop workshop, normal working temperature higher than the environment temperature 15 to 25 ℃; Hydraulic equipment in the temperate zone, outdoor high 25 to 38 ℃; In the tropical outdoor under the sun, high 40-50 ℃
