A2F piston pump, A2F28R2P3 A2F32RL2Z3 A2F56R2Z3 |
|
|
|
Product name：A2F piston pump, A2F28R2P3 A2F32RL2Z3 A2F56R2Z3 |
|
Item： |
|
Details： |
|

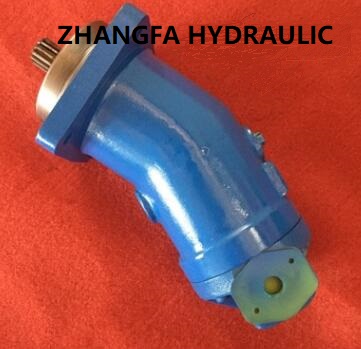

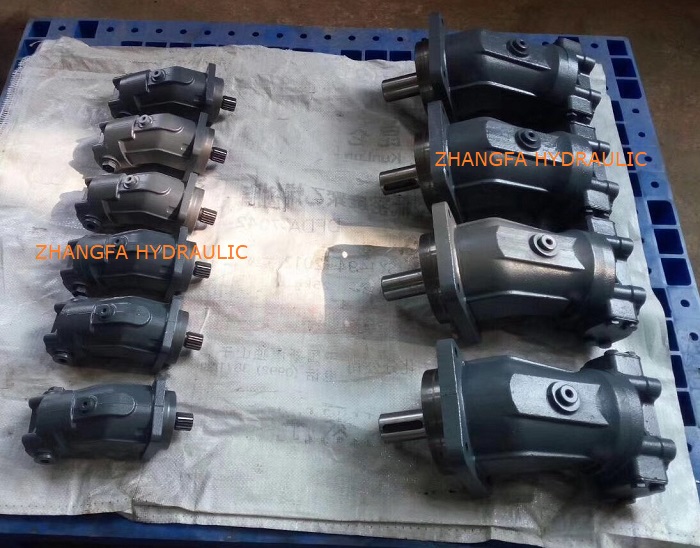

A2F piston pump, A2F28R2P3 A2F32RL2Z3 A2F56R2Z3 How to order:   Quantitative A2F piston pump features edited
The high performance rotating assembly with a proven spherical distributor has the advantages of automatic centering, low circumferential speed and high efficiency.
Durable ball and roller bearings promote long service life.
The drive shaft can bear radial load.
ISO mounting flanges, consistent from specification 55 for constant duty pumps/motors and variable duty motors.
Use anti - flammable hydraulic fluid.
Low noise.
Working pressure of pump/motor:
Pressure at pump outlet or motor inlet (oil outlet A or B)
Rated pressure -- PN=35MPa
Maximum pressure -- Pmax=40MPa
The minimum pressure of pumping oil S or A and B
Pabsmin - 0.08 MPa (absolute)
Maximum allowable pressure of pump/motor housing (oil port T)
Pabsmax - 0.2 MPa (absolute)
 A2F quantitative piston pump features: high performance rotating assembly with proven spherical disc has the advantages of automatic centering, low circumferential speed and high efficiency. Durable ball and roller bearings promote long service life. The drive shaft can bear radial load. ISO mounting flanges, consistent from specification 55 for constant duty pumps/motors and variable duty motors. Use anti - flammable hydraulic fluid. Low noise.
An axial plunger element with a bent shaft, having a fixed displacement and used as a pump or motor for hydrostatic transmission in open or closed circuits.
When working as a pump, the flow rate is proportional to the driving speed and displacement.
When working as a motor, the output speed is proportional to the flow and the displacement is inversely proportional. The output torque increases with the pressure difference between the high and low pressure sides.
Specifications 10 12 28 45 55 63 80 107 125 160 200 250 355 500
Vg(ml/r) 9.4 11.6 22.7 28.1 44.3 54.8 63 80 107 125 160 200 250 355 500
Maximum speed nmax(r/min) 5000 4000 4000 3000 3000 2500 2700 2240 2000 2240 1750 1800 1500 1320 1200 |
|
 |
