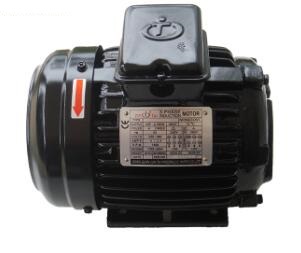

Product Name:three pahse 1HP4Poles electric motors with terminal box on top

Model Number:3 Phase 1HP-4P

Frequency:50Hz

Output Power:0.75 kw

Phase:Three-phase

Certification:CCC,CE

AC Voltage:220/380V

Place of Origin:China (Mainland)

Efficiency:IE 3

POLES:4P

Frame size:100

WEIGHT:16 KG

Flange size:106.4 mm

shaft diameter:12.70 or 15.875 mm

mounting holes distance:106 mm

parallel key size:25x3.175 mm

Product Description

STYLE:  three pahse 1HP 4Poles electric motors with terminal box on top

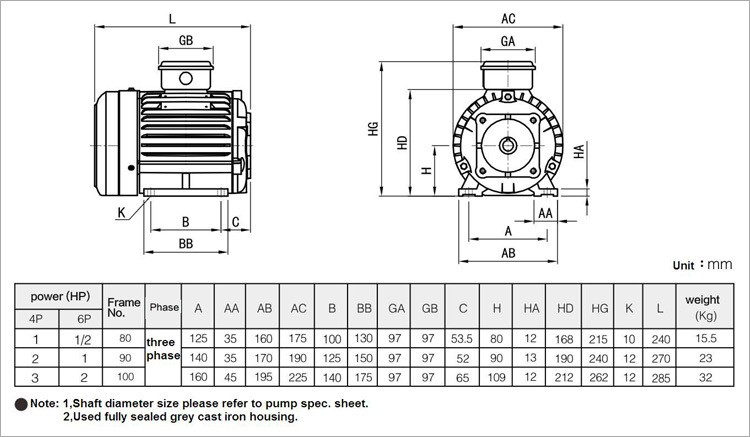

Installation drawing:


The following drawing are the installation dimension.

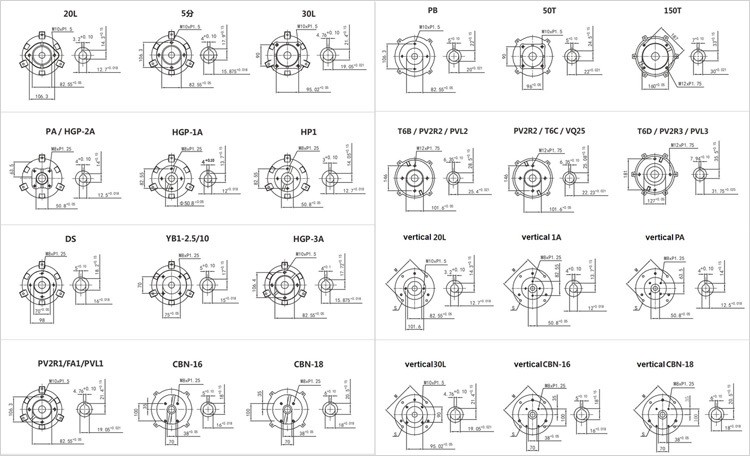

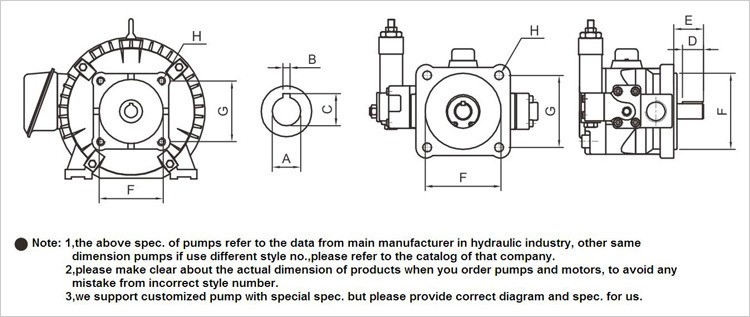

The following spec. sheet are the mounting dimension,such as flange size,shaftdiameter,etc.

Packaging & Shipping

Packaging:pack one pump in one plastic bag,then put it in one thick paper carton,thenheap up them on the plastic pallet, wrap the plastic pallet andcartons with plastic membrane then bind the cartons with plasticpacking belt.

Deliverydate:about 10-20 days after receipt your 30%T/T for deposit

Tradeterm: FOB SHENZHEN,or FCA or C&F or CIF

Shippingfor sample and bulk productions:

sendsample by international Express(Fedex or UPS or TNT or DHL),sample freight paidby collect.

Forbulk production, shipped as per customer's instruction,shipping process allfllow INCOTERM regulations.

Our Services

Warrantyperiod:  ONE YEAR

1,Withinone week after receipt of the goods, if customer use the products in correctmethod,and find any problem of performance or  construction with obviousevidence,we will be responsible for replacement or other discussing solutionbetween us.

2,Butif customer using method are not correct, or customer disassemble our productsprivately,we will not  responsible  for any problem or defectivepoints of products.

3,If you meet any questions of installation or debugging, please inquiry usanytime, our Engineer will provide technical support in time, or we will helpyou to resolve the technical failure through online video.

4,Any damage from transportion, we will slove the problem according to theresponsibility standard of INCOTERMS.
