Rexroth 4WE6 series solenoid directional valve 4WE6E6XED24NLL

Product name：Rexroth 4WE6 series solenoid directional valve 4WE6E6XED24NLL

Item：

Details：

Rexroth 4WE6 series solenoid directional valve 4WE6E6XED24NLL

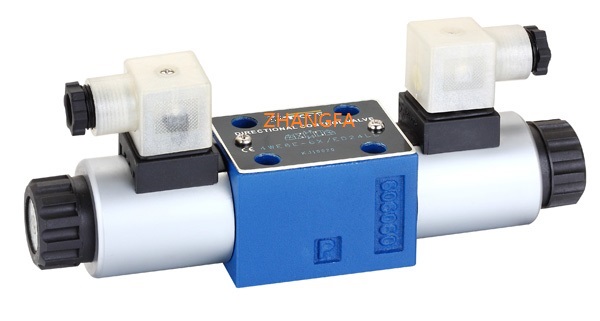

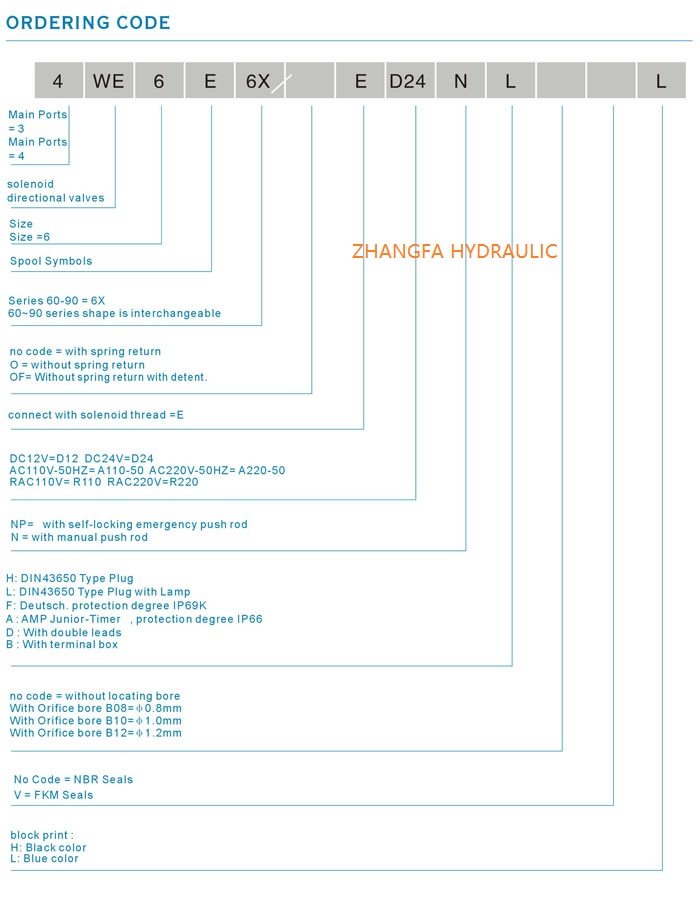

How to order:

Technical data:

General data

Mounting position		anywhere
Operating temperature ℃		-30~+50（nitrile rubber seal）
		-20~+50（rubber seal）
weight	Single solenoid valve kg	1.45
	Double solenoid valve kg	1.95

Hydraulic Data

Maximum operating voltage fluid port P、A、B Mpa			31.5
Hydraulic fluid port Mpa			21（DC）：16（AC) When working pressure exceeds the allowable pressure, valves with the sign bit A,B must use T as oil drain port
Maximum flow rate 1/min			80(DC); 60(AC)
Flux areas （when in the median）	Type Q	mm2	About 6% of the nominal cross-sectional area
	Type W	mm2	About 6% of the nominal cross-sectional area
Hydraulic oil 1、suitable for nitrile rubber and fluoro rubber seal 2、Fluoro seal only			Mineral oil（HL,HLP) by DIN51 524 Rapid biological solution oil by VDMA24 568 HETG 1）； HEPG 2）;HEES 3）
The oil temperature range ℃			-30~+80（nitrile rubber seal）
			-20~+80（rubber seal）
Viscosity range mm2/s			2.8-500
Oil cleanliness			The highest oil pollution level by NASI1639 Class 9 recommend minimum filter filtration precision β10≧75

Hydraulic data

Voltage category	DC	AC（50HZ）
Supply voltage V	12、24、48、110、220	110 220
Allowable voltage tolerance ％	+10~ －15	+10~ —15
Power consumption W	30	-
Holding current A	-	0.17（220V）
Starting current A	-	0.72（220V）
Working system ED％	100	100
Reversing time ms	125~145	10~20
Resetting time ms	100~250	15~40
Switching time times/h	≦15000	≦7200
Protection class by DIN 40050	IP65（AMP:IP66)	（Deutsch:IP69K)
Maximum coil temperature ℃	135℃(class B）	180℃(Class H）

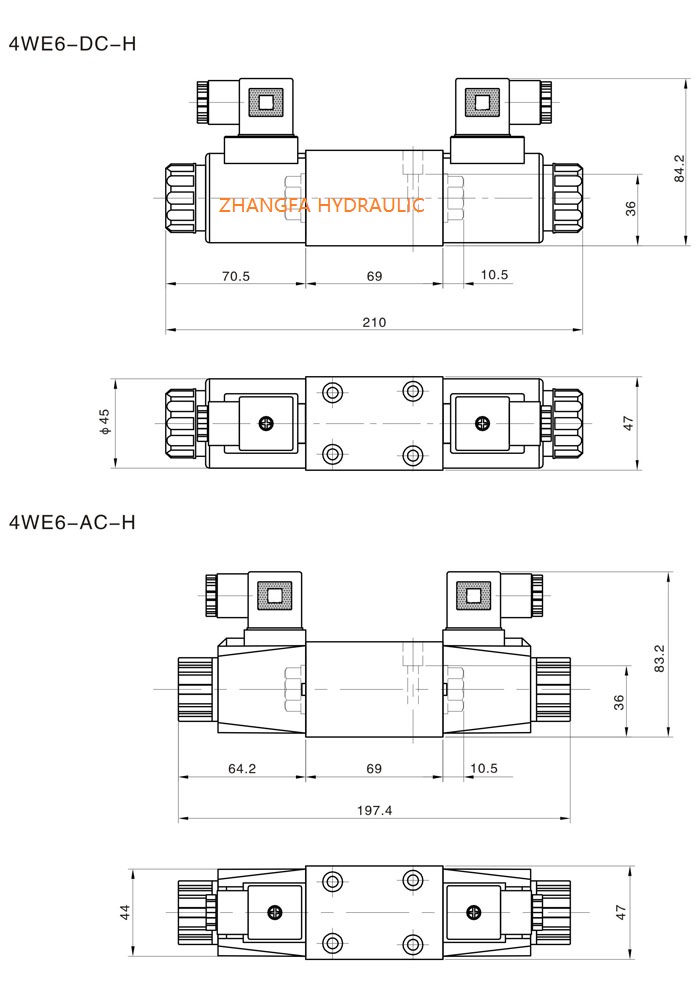

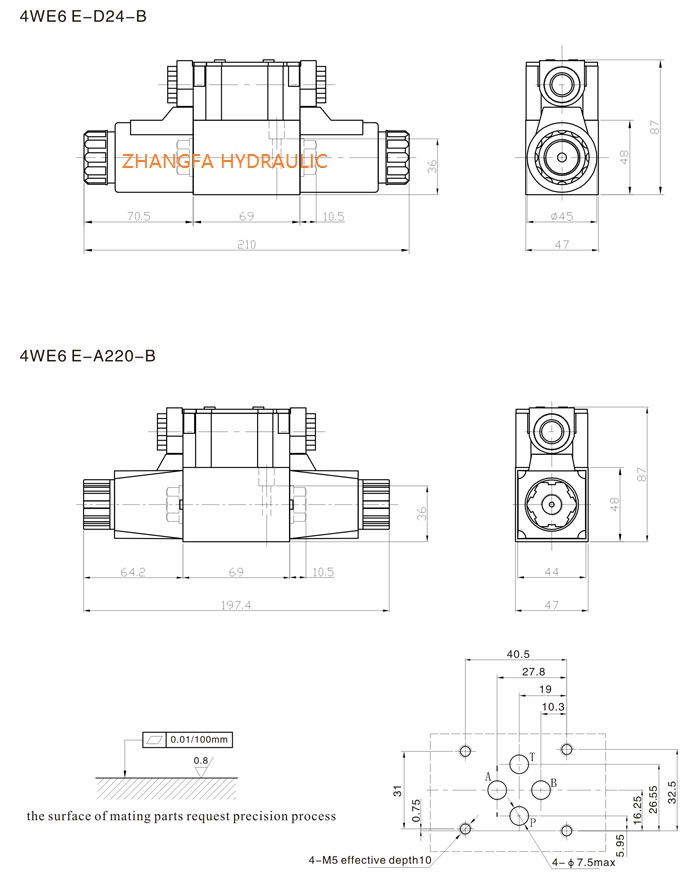

Dimension:

The 4WE6 solenoid directional valves other models:
Solenoid directinal valve 4WE6E6XED12NLL
Solenoid directinal valve 4WE6E6XEA110-50NLL
Solenoid directinal valve 4WE6E6XEA220-50NLL
Solenoid directinal valve 4WE6E6XER110NLL
Solenoid directinal valve 4WE6E6XER220NLL

Solenoid directinal valve 4WE6E6XED12NLH
Solenoid directinal valve 4WE6E6XEA110-50NLH
Solenoid directinal valve 4WE6E6XEA220-50NLH
Solenoid directinal valve 4WE6E6XER110NLH
Solenoid directinal valve 4WE6E6XER220NLH

Solenoid directinal valve 4WE6E6XED12NPLL
Solenoid directinal valve 4WE6E6XEA110-50NPLL
Solenoid directinal valve 4WE6E6XEA220-50NPLL
Solenoid directinal valve 4WE6E6XER110NPLL
Solenoid directinal valve 4WE6E6XER220NPLL

Solenoid directinal valve 4WE6E6XED12NHL
Solenoid directinal valve 4WE6E6XEA110-50NHL
Solenoid directinal valve 4WE6E6XEA220-50NHL
Solenoid directinal valve 4WE6E6XER110NHL
Solenoid directinal valve 4WE6E6XER220NHL

Solenoid directinal valve 4WE6E6XED12NFL
Solenoid directinal valve 4WE6E6XEA110-50NFL
Solenoid directinal valve 4WE6E6XEA220-50NFL
Solenoid directinal valve 4WE6E6XER110NFL
Solenoid directinal valve 4WE6E6XER220NFL

Solenoid directinal valve 4WE6E6XED12NAL
Solenoid directinal valve 4WE6E6XEA110-50NAL
Solenoid directinal valve 4WE6E6XEA220-50NAL
Solenoid directinal valve 4WE6E6XER110NAL
Solenoid directinal valve 4WE6E6XER220NAL

Solenoid directinal valve 4WE6E6XED12NDL
Solenoid directinal valve 4WE6E6XEA110-50NDL
Solenoid directinal valve 4WE6E6XEA220-50NDL
Solenoid directinal valve 4WE6E6XER110NDL
Solenoid directinal valve 4WE6E6XER220NDL

Solenoid directinal valve 4WE6E6XED12NBL
Solenoid directinal valve 4WE6E6XEA110-50NBL
Solenoid directinal valve 4WE6E6XEA220-50NBL
Solenoid directinal valve 4WE6E6XER110NBL
Solenoid directinal valve 4WE6E6XER220NBL
