Little king kong automatic intermittent lubrication pump KCMM-2A

Little king kong automatic intermittent lubrication pump KCMM-2A

Product name:Little king kong automatic intermittent lubrication pump KCMM-2A

Item:

Details:

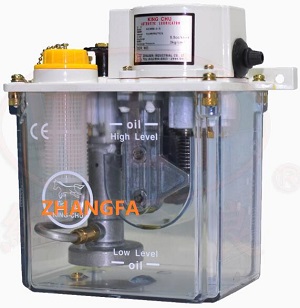

Little king kong automatic intermittent lubrication pump KCMM-2A

How to order:
型式
Type
KCMM-2 KCMM-2A KCMM-2F
間歇時間
Interval Time
5, 10, 15, 30分 5, 10, 15, 30分 5, 10, 15, 30分
吐出壓力
Discharge Pressure
2.5~3kg/cm2 2.5~3kg/cm 2.5~3kg/cm
吐出量
Output
2.5~5.5 cc/shot 2.5~5.5 cc/shot 2.5~5.5 cc/shot
吐出口徑
Outlet Dia.
4 ∅ or 6 ∅ 4 ∅ or 6 ∅ 4 ∅ or 6 ∅
電壓
Voltage
110 V or 220 V 110 V or 220 V 110 V or 220 V
油桶容量
Tank Vol.
2000 cc 2000 cc 2000 cc
有效容量
Effective Vol.
1800 cc 1800 cc 1800 cc
重量
w.t / kg
2.4 2.4 2.4
Little king kong automatic intermittent lubrication pump KCMM-2;
Little king kong automatic intermittent lubrication pump KCMM-2F.

(1) use standard lubricating oil (guoguang #M32, #68)

(2) note whether the motor operates in the direction indicated.

(3) when adjusting the amount of oil flowing out, do not remove the locking nut at the upper end of the instantaneous oil feeding knob.

(4) before the motor is started or the motor has not been used for a long time, when it is reused, first pull the manual lever for 4-5 times to lubricate it. When pulling by hand, do not try to force the hand lever back to the original position.

(5) clean or replace the oil filter net once or more times a year to ensure smooth operation.

Discharge volume adjustment method

(1) with a screwdriver ㊀ type fixed (*) the top of the piston rod, loosen locking nut then Ⓘ for two-way adjusting (small large amount of clockwise and counterclockwise.

(2), Loosen locking Ⓘ Lei cap
the rotary joint lever (2) to a fixed position in standard, and then fixed firmly to this position.

(3) the scale and spit amount are shown in the right table.
