Aluminum housing electric motor vane pump set for hydraulic

Aluminum housing electric motor vane pump set for hydraulic

Product name:Aluminum housing electric motor vane pump set for hydraulic

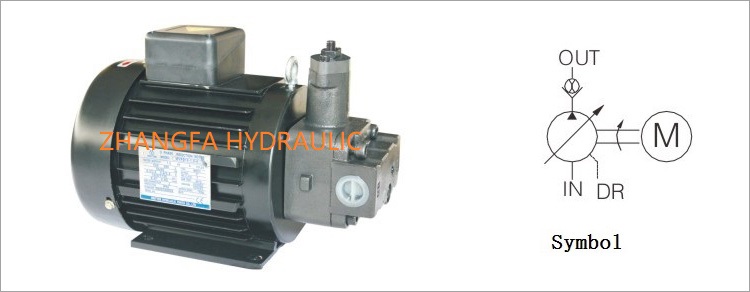

Aluminum housing 2HP electric motor vane pump set for hydraulic

How to order:

MVPD hydraulic power unit

Model Number: 3 Phase 2HP-4P-20L

Placeof Origin: China(Mainland)

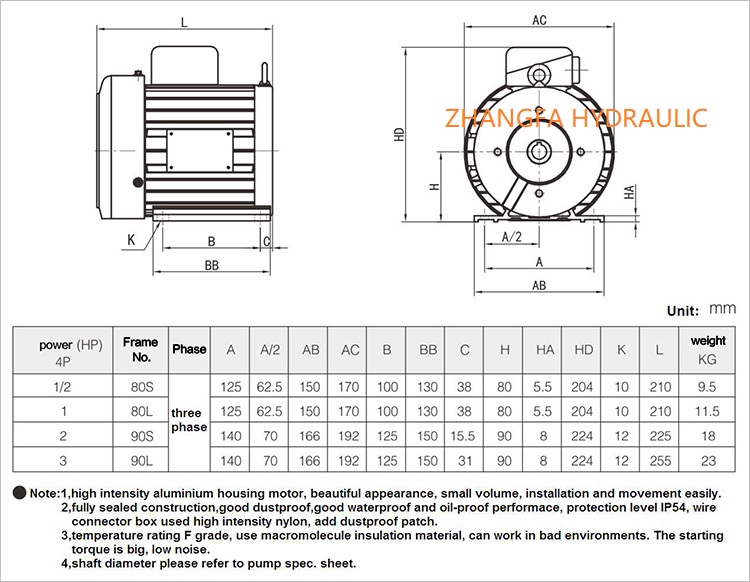

Frame:aluminium Housing

Motor type: combination

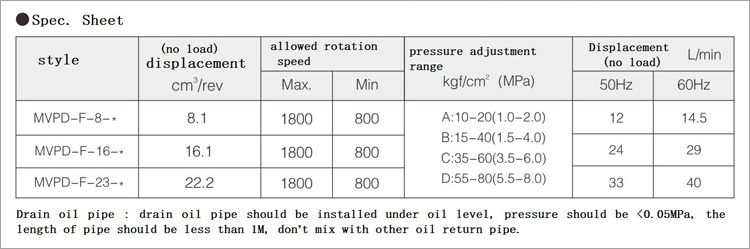

displacement: 16 cm3/rev

shaft diameter: 12 mm

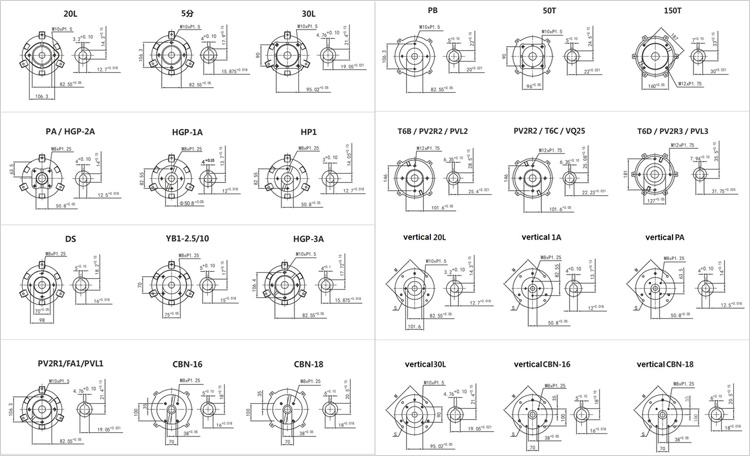

flangesize:: 50.77mm

Material: aluminiumhousing

rotation speed: 1500/ 1800 r/min

weight: 16 kg

SupplyAbility: 10000Piece/Pieces per Month

PackagingDetails plasticbag pack pumps,then put into thick carton, then heap up these cartons on theplastic pallet.

The motor pump set characteristic: low noise , small volume, high efficiency, long working life.
1, circuit boards and pressure gauge can mount on the pump directly,decrease the cost of pipe ,delivery port setted as both teeth port and flangeconnecting ways.

2, this vane pump have special inner structure ,can operate with high efficiencyin low pressure. the pressure balance can get best effect through externaldrain oil, further to decrease the temperature, promote the efficiency.

3, pump don’t connect with motor directly ,with indirect coupling ,decrease therequirement of concentricity for pump connect with motor, so that decrease thenoise from shock of shaft and deviated concentricity ,and the hydraulic oil ofconnecting part can lubricate the bearing at the same time, prolong the workinglife.
